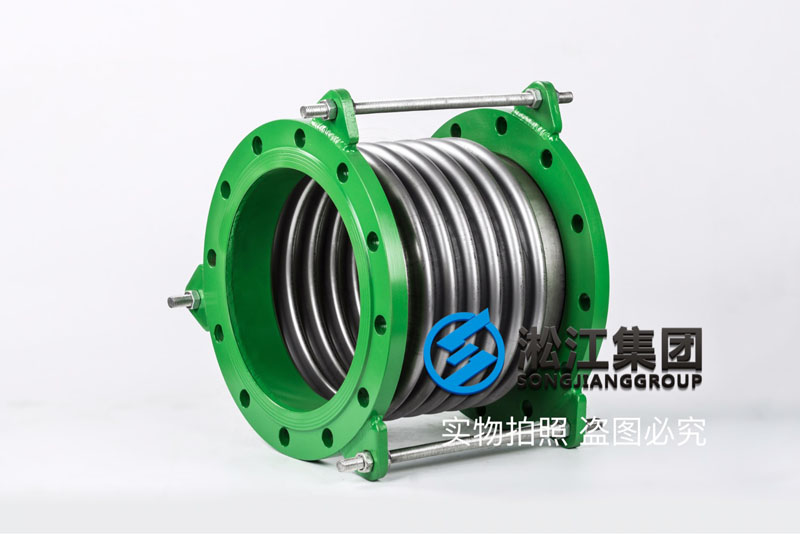

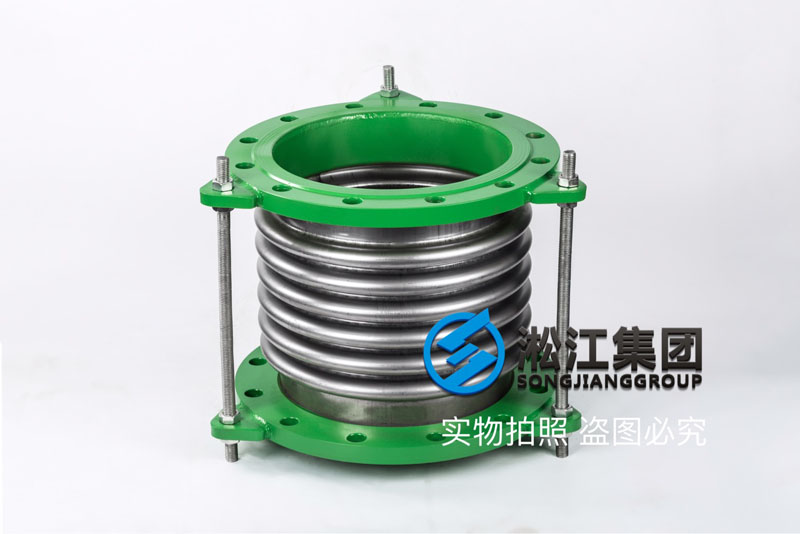

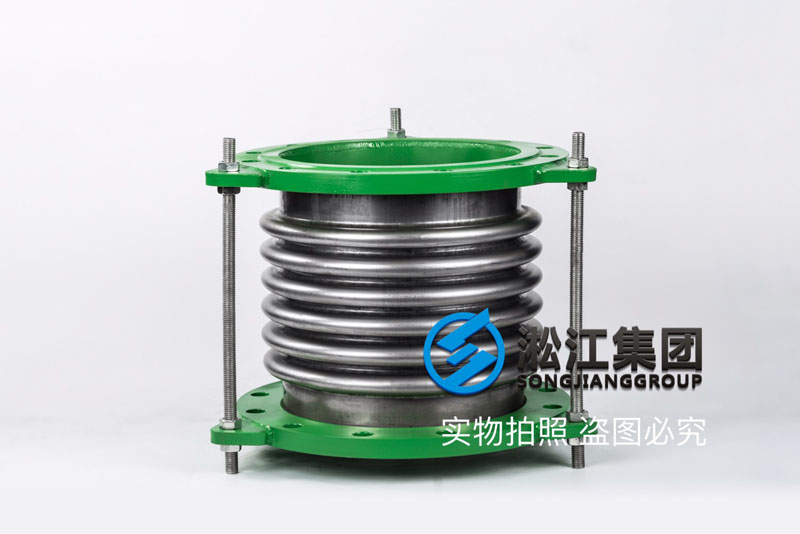

BGF-DN300热力管道金属补偿器
BGF Heat pipe metal compensator
上海淞江减震器集团有限公司官方网站为您介绍：BGF-DN300热力管道金属补偿器信息，淞江集团是一家从事金属补偿器的生产厂家，为北方众多热力公司配套，波纹全部采用正宗304加厚材料生产，确保城市供暖安全运行。
Shanghai Songjiang absorber group limited official website for your introduction: BGF-DN300 heat pipe metal compensator, Songjiang group is a professional manufacturer of metal compensator, for many northern Thermotics Inc supporting the use of authentic materials all 304 thick corrugated production, to ensure the safety of city heating operation.
名称：不锈钢金属补偿器
口径：DN300mm
压力：PN16
波数：6波
厚度：1.5mm
长度：370mm
伸缩量：60mm
波纹材质：不锈钢304
法兰材质：碳钢（锻打）
适用于：管道管线中
作用：吸收管道热胀冷缩的轴向位移
缺点：请在管道进水口加装有效去除氯离子装置（氯离子含量不超过25mg/L），避免水
氯离子含量超标，产生针孔腐蚀；
取代者：
橡胶接头是用在设备进出口的，可以补偿轴向和横向位移，减震效果是最好的。并且不受管道内部介质的腐蚀。
品品：淞江集团
制造商：上海淞江减震器集团有限公司
Name: stainless steel metal compensator
Caliber: DN300mm
Pressure: PN16
Wave number: 6 wave
Thickness: 1.5mm
Length: 370mm
Scalability: 60mm
Corrugated material: stainless steel 304
Flange material: carbon steel (forging)
Brand: Songjiang group
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
BGF-DN300热力管道金属补偿器采用奥氏体不锈钢材料或按用户要求的材料制造，具有优良的柔软性，耐蚀性，耐高温性，耐高压性，在管路中可以补偿轴向位移，用以温度补偿和吸收振动、降低噪声、改变介质输送方向、消除管道间或管道与设备间的机械位移等，双法兰金属波纹软管对有轴向位移的管线补偿尤为适用。
BGF-DN300热力管道金属补偿器属于一种补偿元件。利用其工作主体波纹管的有效伸缩变形，以吸收管线、导管、容器等由热胀冷缩等原因而产生的轴向变化，或补偿管线、导管、容器等的轴向位移。也可用于降噪减振。
BGF-DN300 heat pipe metal compensator adopts austenitic stainless steel material or according to user requirements for the manufacture of materials, with softness, excellent corrosion resistance, high temperature resistance, high pressure, in the pipeline can be connected to any direction, with temperature compensation and absorption vibration and noise reduction, changing the medium conveying direction, eliminate the mechanical displacement of the pipe or pipe and between devices, especially for the flexible joint with double flange corrugated metal hose on the displacement and vibration of pump and valve etc..
The BGF-DN300 thermal pipe metal compensator belongs to a compensation element. The effective expansion and deformation of bellows should be utilized to absorb the size changes caused by thermal expansion, shrinkage and other reasons, or to compensate for axial, lateral and angular displacement of pipelines, pipes and containers. It can also be used for noise reduction and vibration reduction.

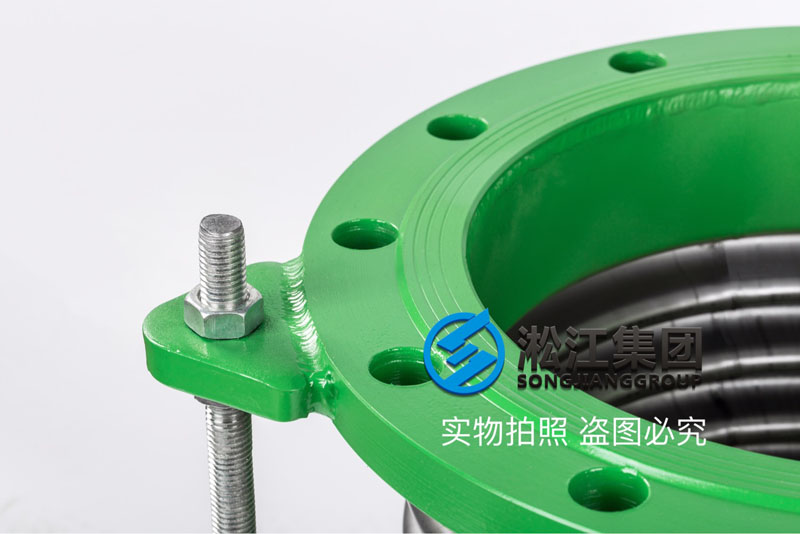

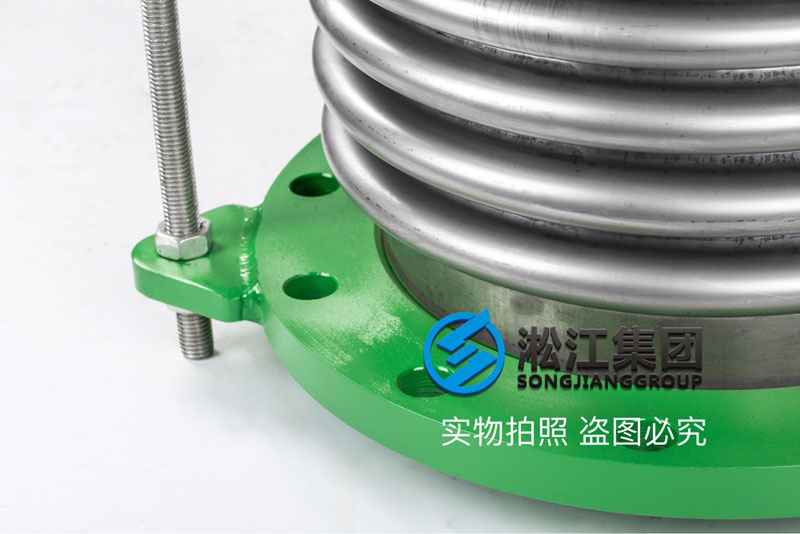

材料说明：上海淞江集团所有波纹金属补偿器产品所有波纹全部采用不锈钢304正材生产，支持各种光谱仪检测，假一赔十，厚度全部厚于同行业标准，为了更持久的使用寿命，法兰全部采用山西正宗锻打材质，焊材全部采高于母材等级标准，耳板全部采用加大加厚尺寸生产，螺杆全部采用8.8级高强度镀锌，为100%确保产品的综合强度，上海淞江集团工厂通过德国莱茵TUV认证，（
2021年上海淞江减震器集团南通有限公司获得德国莱茵TUV证书），我们严格按照压力管道生产要求进行生产，让出厂的每一个波纹金属补偿器产品达到100%的合格。
Material description: all corrugated metal compensator products of Shanghai Songjiang group are made of stainless steel 304 normal materials, which supports the detection of various spectrometers. One false is compensated for ten, and the thickness is all thicker than the industry standard. In order to prolong the service life, all flanges are made of Shanxi authentic forging materials, all welding materials are higher than the base metal grade standard, and all ear plates are made of thickened size, All the screws are made of grade 8.8 high-strength galvanized. In order to ensure the comprehensive strength of the products 100%, Shanghai Songjiang Group factory has passed the TUV certification of Germany Rhine (Shanghai Songjiang shock absorber Group Nantong Co., Ltd. obtained the TUV certificate of Germany Rhine in 2021). We produce in strict accordance with the production requirements of pressure pipeline, so that each corrugated metal compensator product delivered can reach 100% qualification.
