【DIN2501】DN150德标橡胶接头“出口工厂”
上海淞江减震器集团有限公司官方网站为您介绍：【DIN2501】DN150德标橡胶接头“出口工厂”信息，淞江集团常年出口德标橡胶接头，执行标准DIN2501 PN16，以下是DN150单标橡胶接头介绍。
DN150 single ball standard rubber joint "export factory"
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [DIN2501] DN150 single ball German standard rubber joints "export factory" information, the annual export of Meijiang Group single ball German standard rubber joints, the implementation of the standard DIN2501 PN16, the following is the DN150 single ball German standard rubber joints.

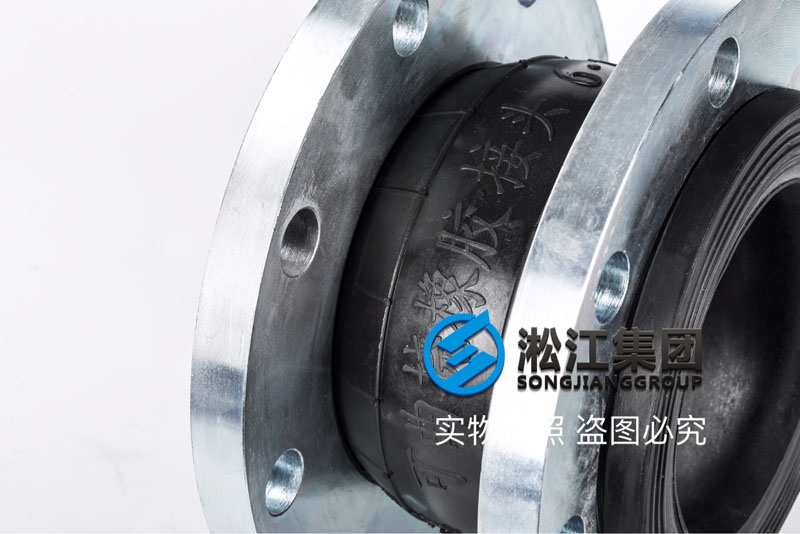

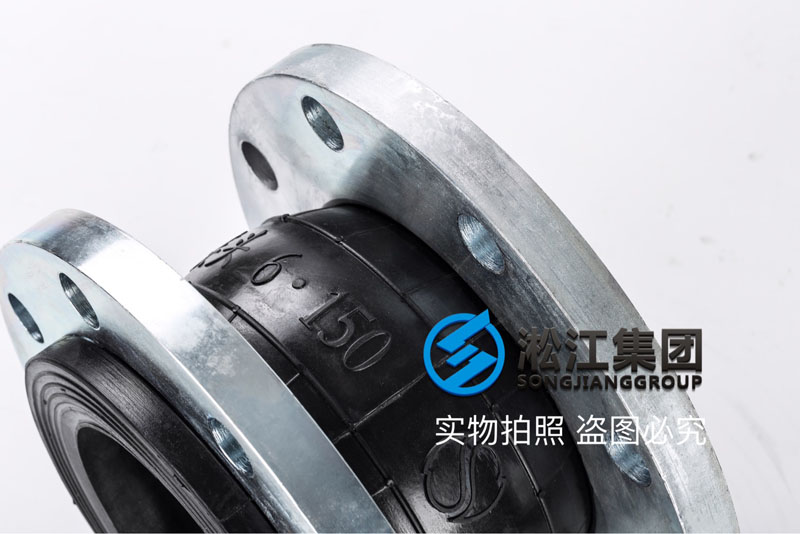

一、DN150德标橡胶接头实物拍照：
二、DN150德标橡胶接头参数介绍：
名称：单球德标橡胶接头
型号：DN150
安装长度：180mm
轴向压缩：18mm
轴向伸长：10mm
轴向拉伸：10mm
横向位移：12mm
偏转角度：15°
标准：DIN 2501
压力：PN16
法兰：碳钢（Q235）
介质：普通水、
质保：3年
橡胶材质：天然橡胶
使用优点：减震、降噪、保护冷水机组的长期使用，降低维修成本。
生产厂家：上海淞江减震器集团有限公司
资质证书：合格证、质保书、检验报告、德国莱茵TUV认证、国家型式试验报告、第三方性能检测报告、含量成分检测报告。
淞江集团橡胶接头生产流程：原材料检测-小料自动配料-大料自动配料-自动混炼-自动成筒-自动成型-自动硫化-质量检测-实验室检测-交付客户。
Name: single ball standard rubber joint
Model: DN150
Installation length: 180mm
Axial compression: 18mm
Axial elongation: 10mm
Axial tension: 10mm
Lateral displacement: 12mm
Deflection angle: 15 degrees.
Standard: DIN 2501
Pressure: PN16
Flange: carbon steel (Q235)
Medium: ordinary water,
Warranty: 3 years
Rubber Material:
Advantages: shock absorption, noise reduction, protection of the long of chillers, and reduction of maintenance costs.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Content Component Test Report.Production process of rubber joint in Songjiang group：Raw Material Testing - Automatic Blending of Small Material - Automatic Blending of Large Material - Automatic Mixing - Automatic Forming - Automatic Sulfuration - Quality Testing - Laboratory Testing - Delivery to Customers
三、DN150德标橡胶接头工厂介绍：
